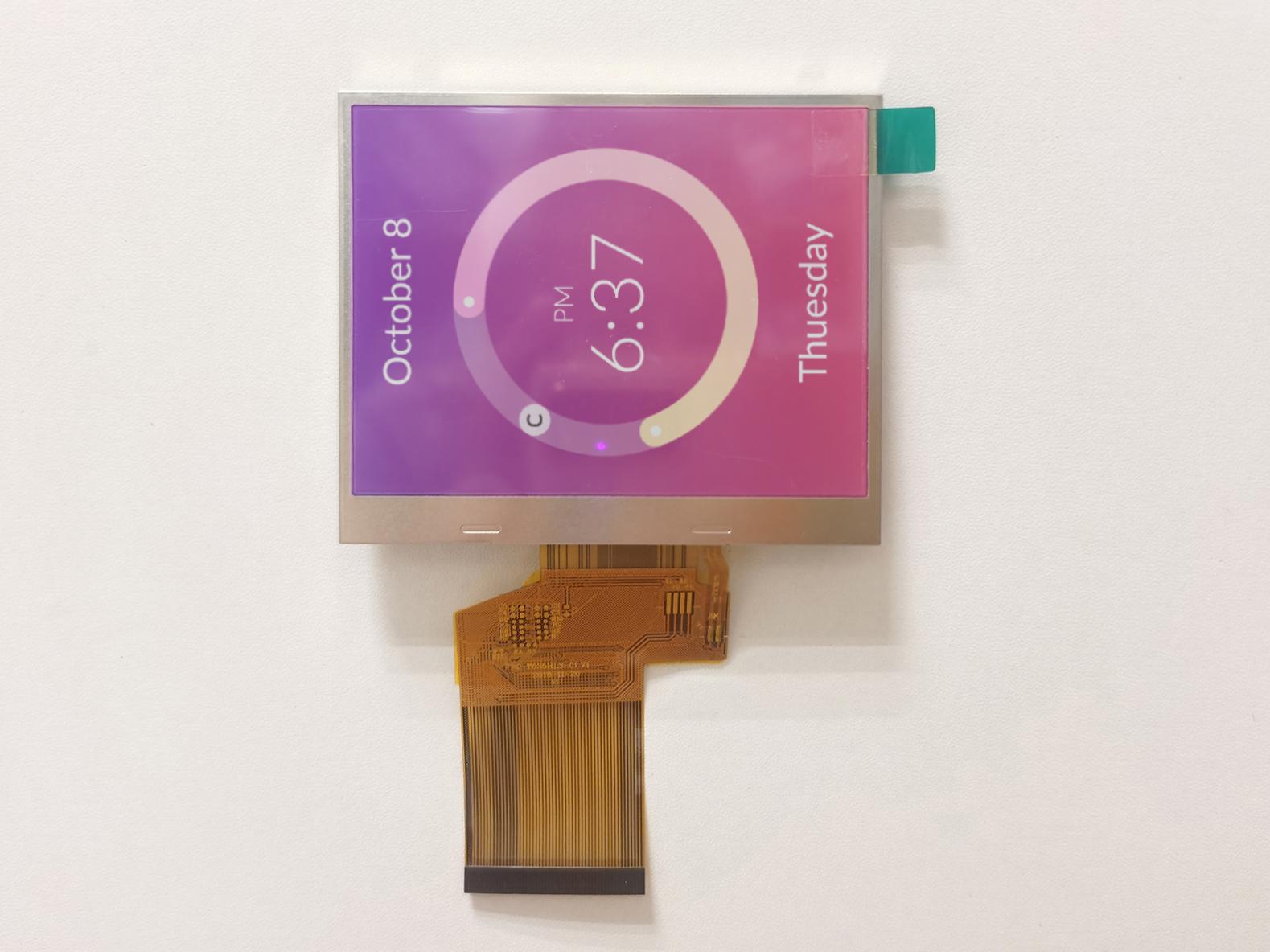

EDC035LQIHN15 Front View

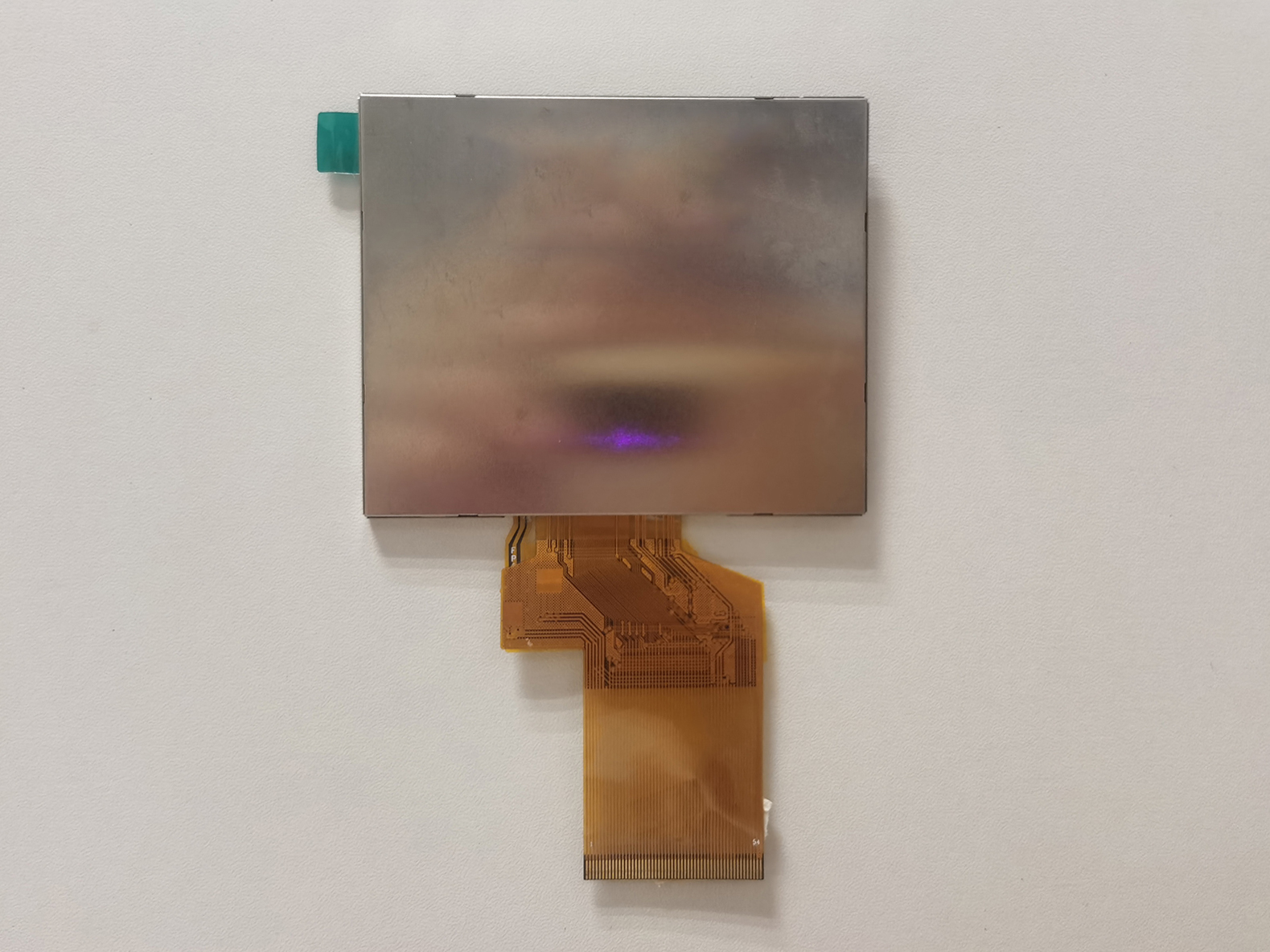

EDC035LQIHN15 Back View

3.5" QVGA 320 x 240 RGB

HSD IPS Glass

Product Details

  • Size: 3.5" QVGA
  • Resolution: 320 x 240
  • Brightness: 300 cd/m²
  • Pin Count: 54
  • LED Config: 6S
  • Interface: RGB
  • Outline Dimension: 76.9 x 63.9 x 3.05 mm
  • AA Dimension: 70.06 x 52.56 mm
  • Storage Temp.: -30°C to 80°C
  • Operating Temp.: -20°C to 70°C
