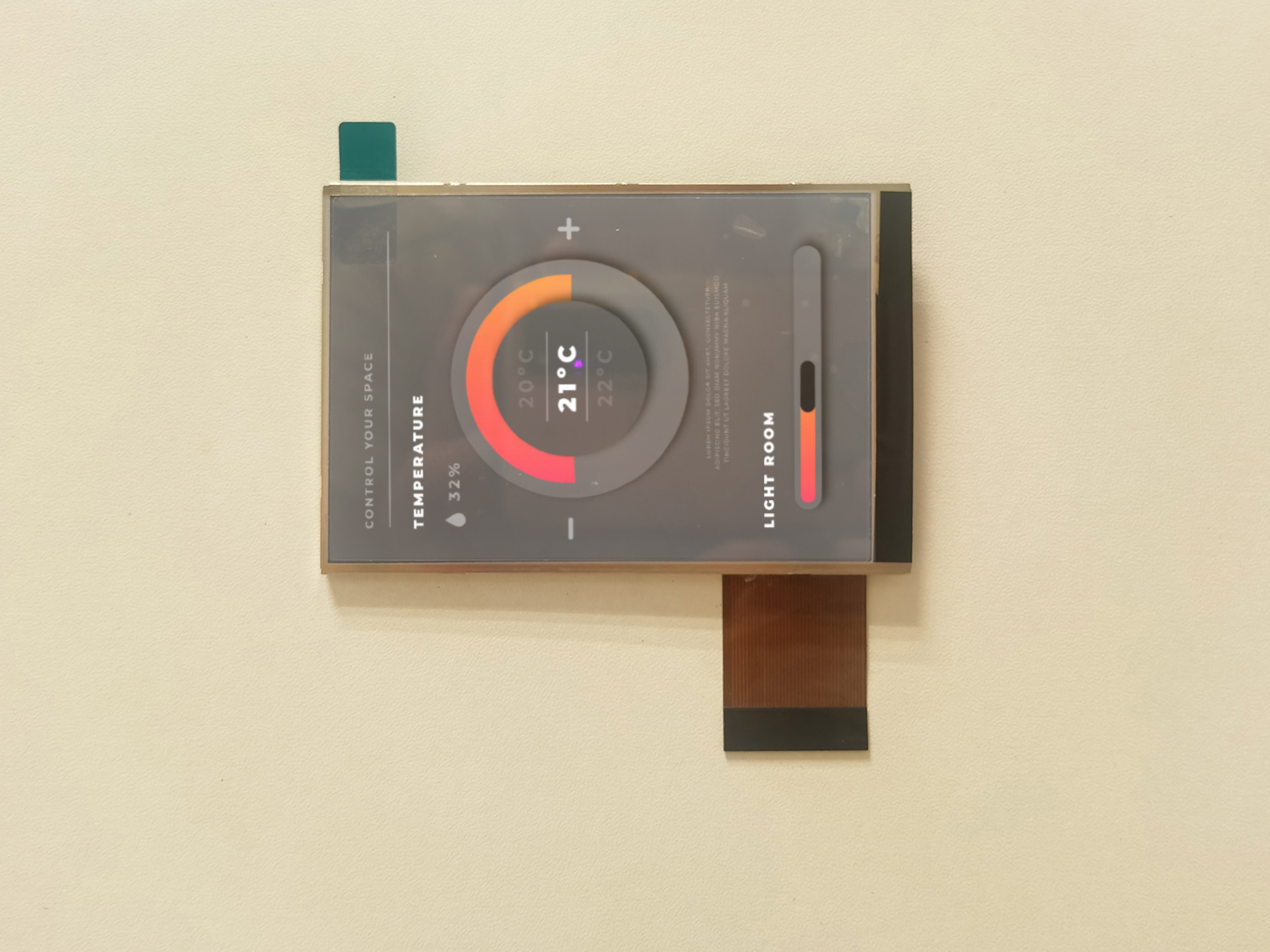

EDC035HVTSN21 Front View

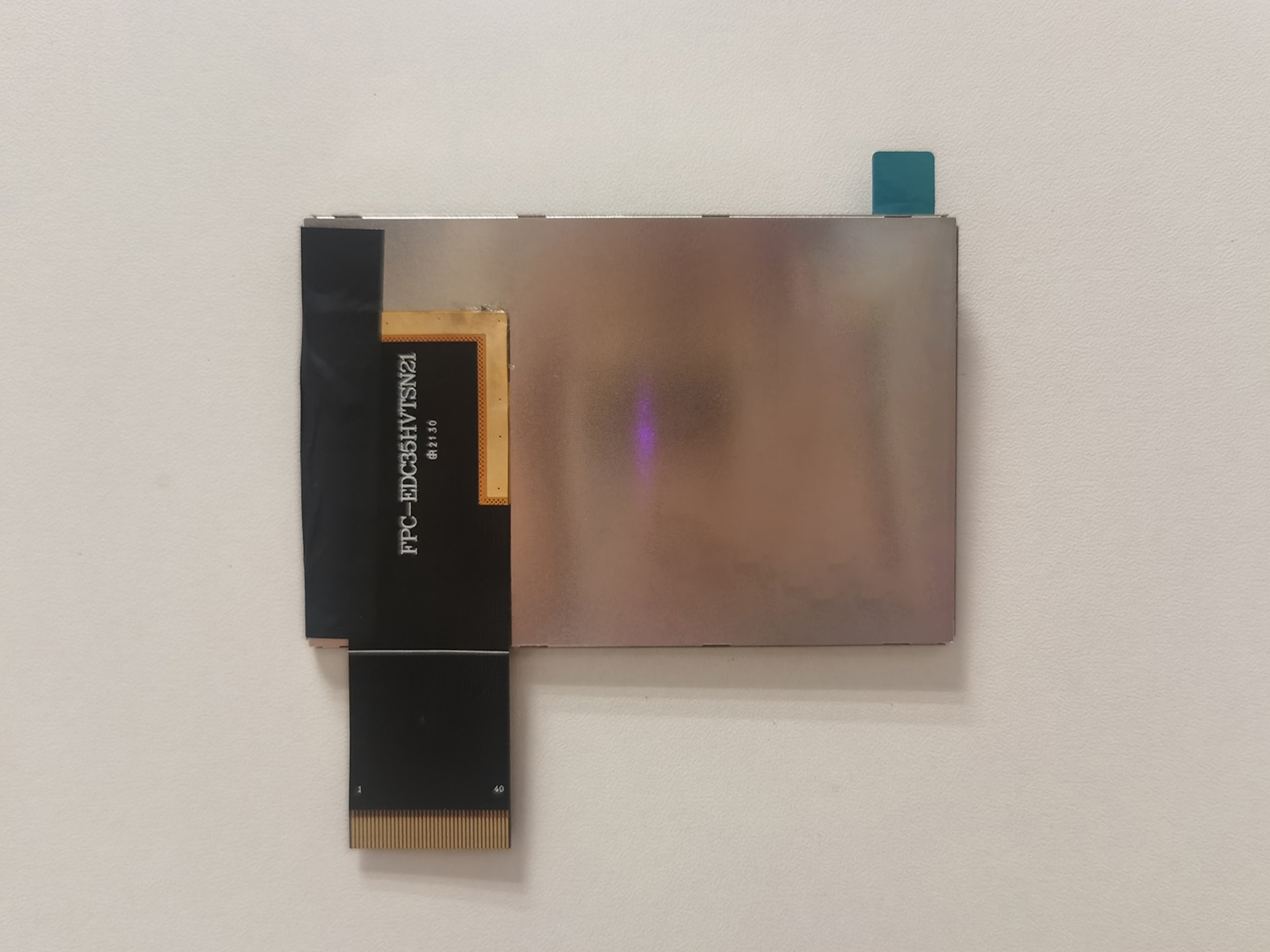

EDC035HVTSN21 Back View

3.5" HVGA 320 x 480 RGB+CPU 18 bit

CTC TN Glass

Product Details

  • Size: 3.5" HVGA
  • Resolution: 320 x 480
  • Brightness: 320 cd/m²
  • Pin Count: 40
  • LED Config: 7S
  • Interface: RGB+CPU 18 bit
  • Outline Dimension: 54.66 x 82.94 x 2.25 mm
  • AA Dimension: 48.96 x 73.44 mm
  • Storage Temp.: -30°C to 80°C
  • Operating Temp.: -20°C to 70°C
