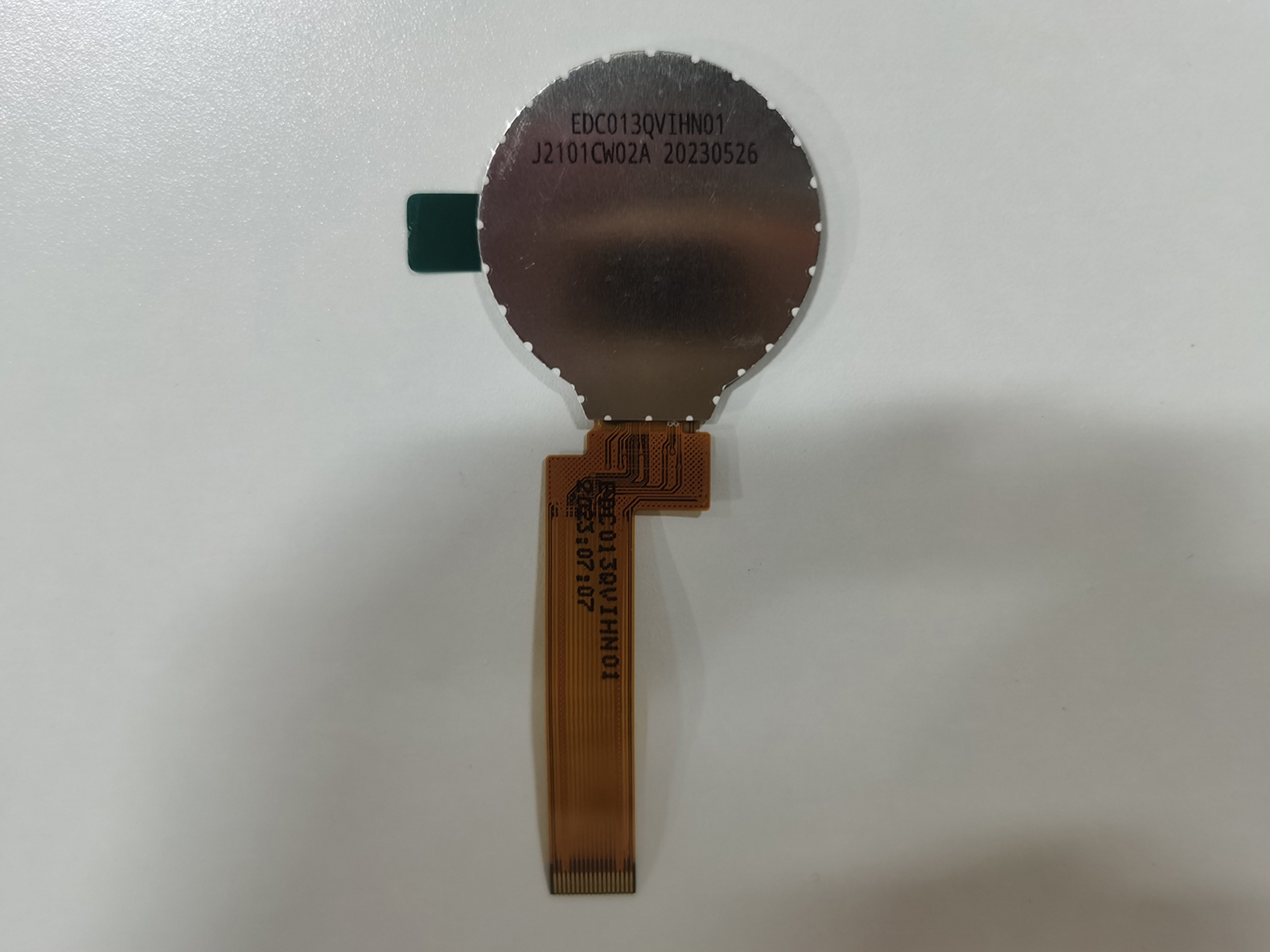

EDC013QVIHN01 Back View

1.3" QVGA 240 x 240 SPI

HSD IPS Glass/Round Shape LCD

Product Details

  • Size: 1.3" QVGA
  • Resolution: 240 x 240
  • Brightness: 400 cd/m²
  • Pin Count: 18
  • LED Config: 2P
  • Interface: SPI
  • Outline Dimension: 35.6 x 38.1 x 1.5 mm
  • AA Dimension: Ø 32.4 mm
  • Storage Temp.: -30°C to 80°C
  • Operating Temp.: -20°C to 70°C
