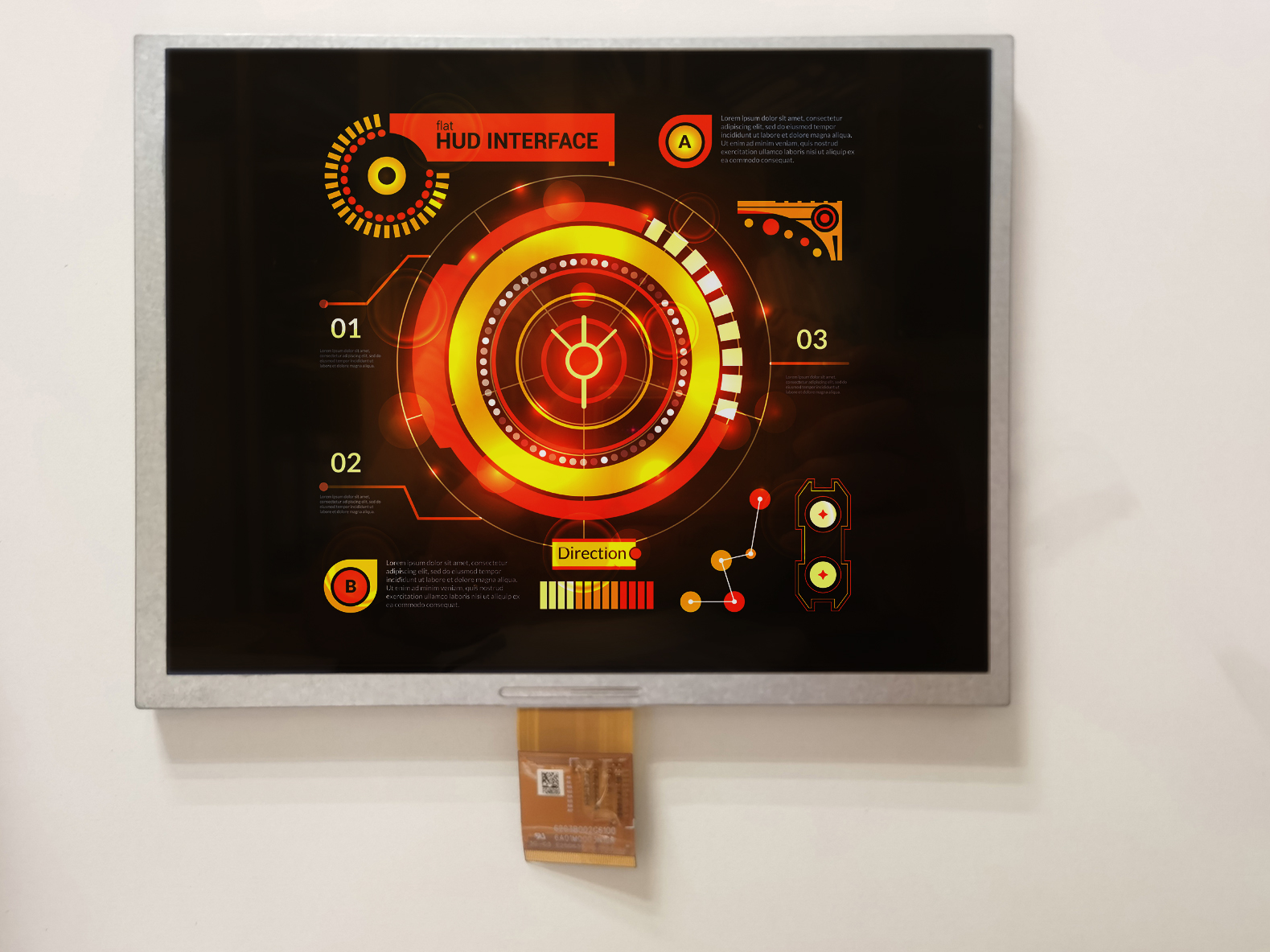

EDC104VSTIN22 Front View

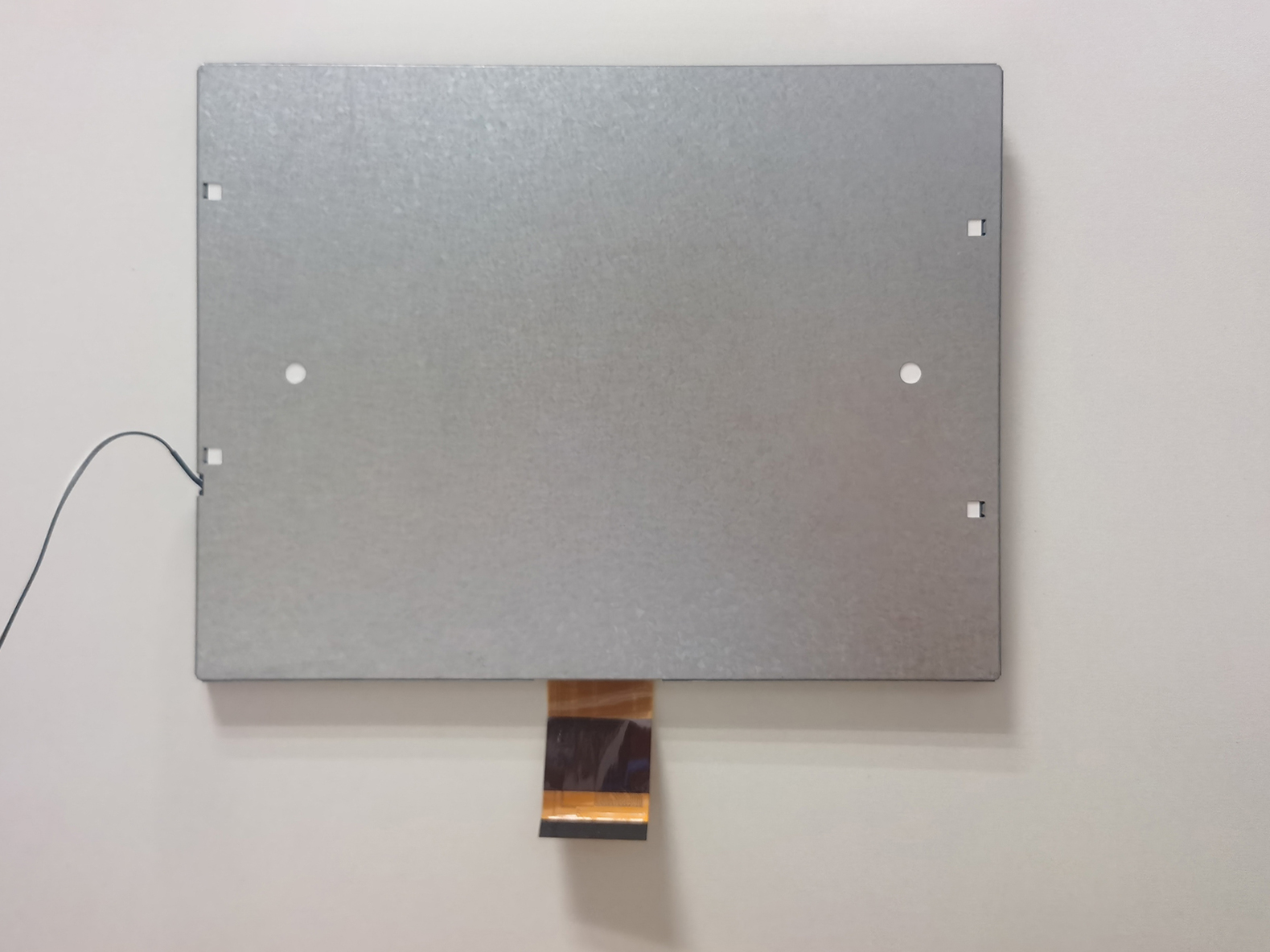

EDC104VSTIN22 Back View

10.4" SVGA 800 x 600 24bit RGB

INNOLUX TN GLASS

Product Details

  • Size: 10.4" SVGA
  • Resolution: 800 x 600
  • Brightness: 650 cd/m²
  • Pin Count: 60
  • LED Config: 3S12P
  • Interface: 24bit RGB
  • Outline Dimension: 228.5 x 175.5 x 5.9 mm
  • AA Dimension: 211.2 x 158.4 mm
  • Storage Temp.: -30°C to 80°C
  • Operating Temp.: -20°C to 70°C
