4.3" WQVGA 480 x 272 24bit RGB

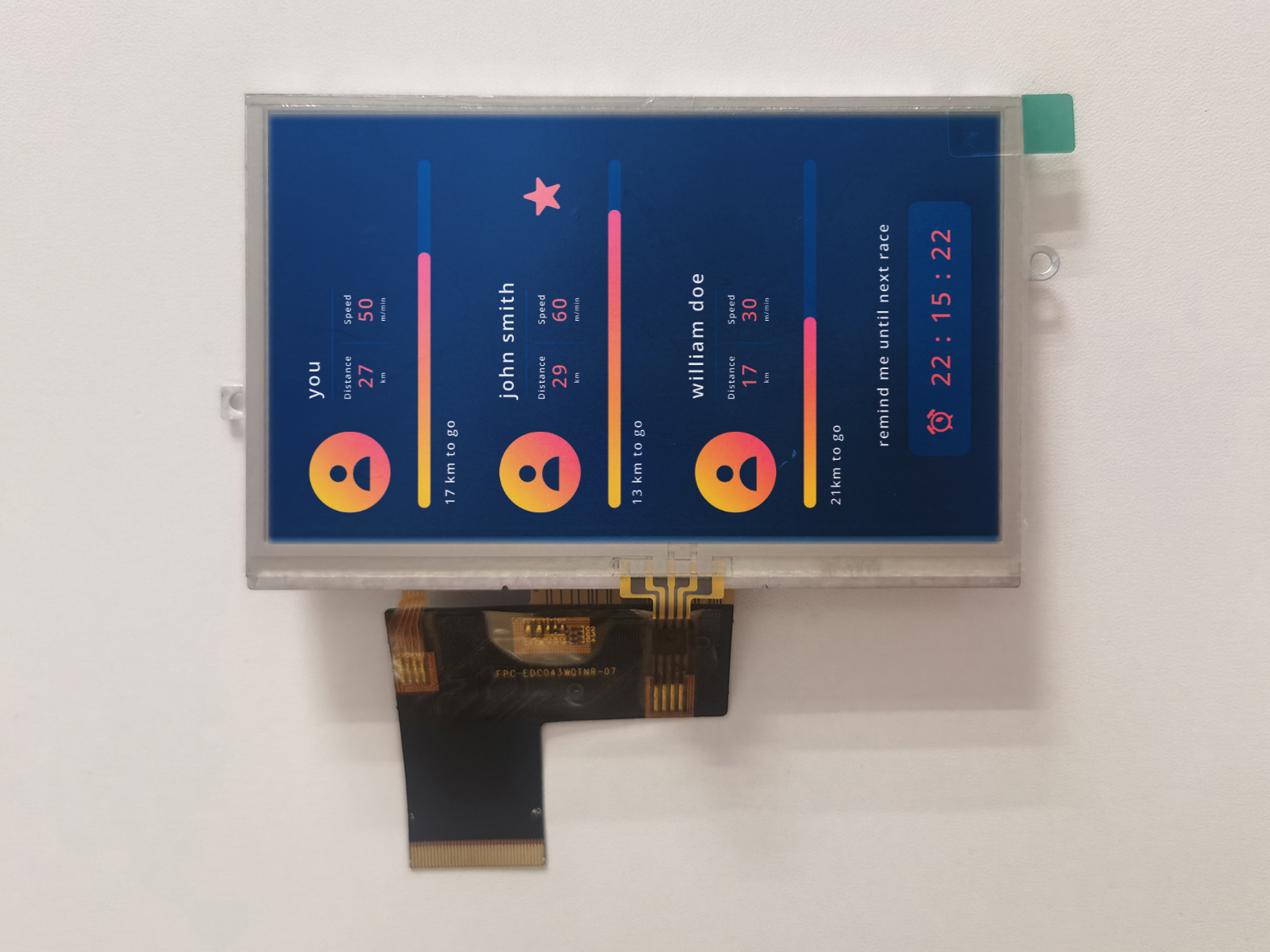

EDC043WQTNR07 Front View

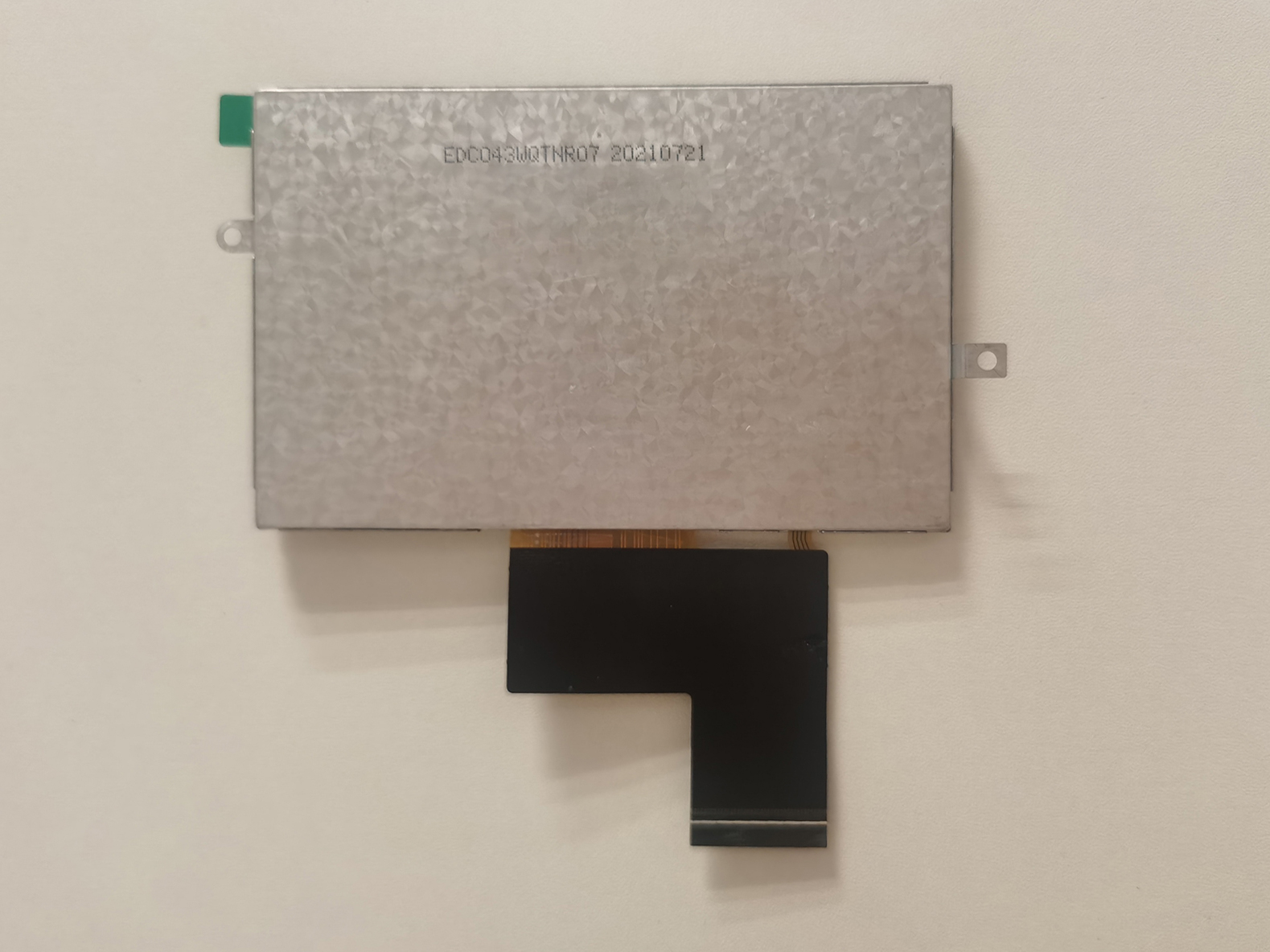

EDC043WQTNR07 Back View

4.3" WQVGA 480 x 272 24bit RGB

INNOLUX New Glass(TN)/With RTP

Product Details

  • Size: 4.3" WQVGA
  • Resolution: 480 x 272
  • Brightness: 300 cd/m²
  • Pin Count: 40
  • LED Config: 5S2P
  • Interface: 24bit RGB
  • Outline Dimension: 105.5 x 67.2 x 4.05 mm
  • AA Dimension: 95.04 x 53.86 mm
  • Storage Temp.: -30°C to 80°C
  • Operating Temp.: -20°C to 70°C
