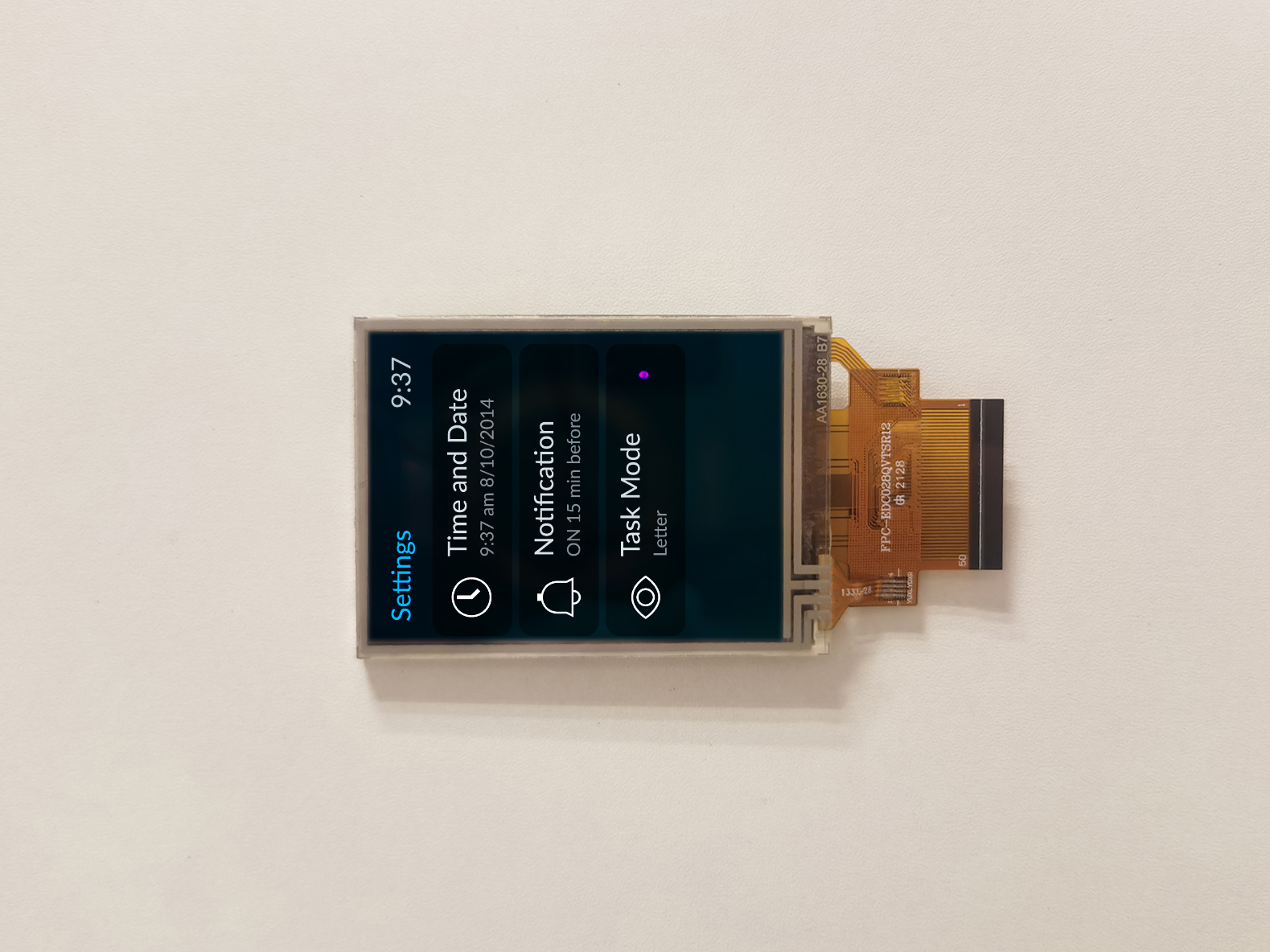

EDC028QVTSR12 Front View

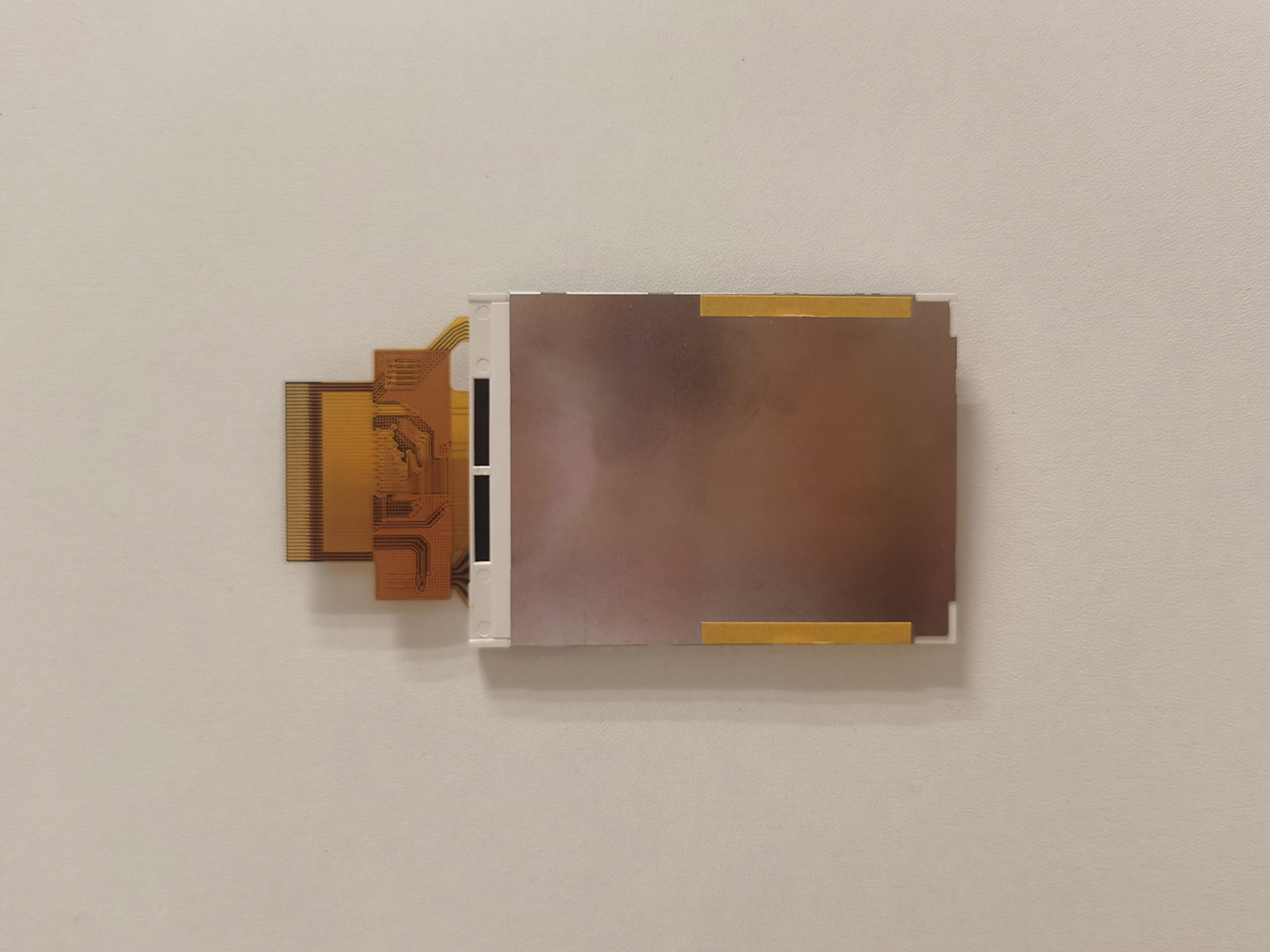

EDC028QVTSR12 Back View

2.8" QVGA 240 x 320 RGB+MCU

CTC TN Glass, With RTP

Product Details

  • Size: 2.8" QVGA
  • Resolution: 240 x 320
  • Brightness: 300 cd/m²
  • Pin Count: 50
  • LED Config: 4P
  • Interface: RGB+MCU
  • Outline Dimension: 50 x 69.2 x 3.4 mm
  • AA Dimension: 43.2 x 57.6 mm
  • Storage Temp.: -30°C to 80°C
  • Operating Temp.: -20°C to 70°C
