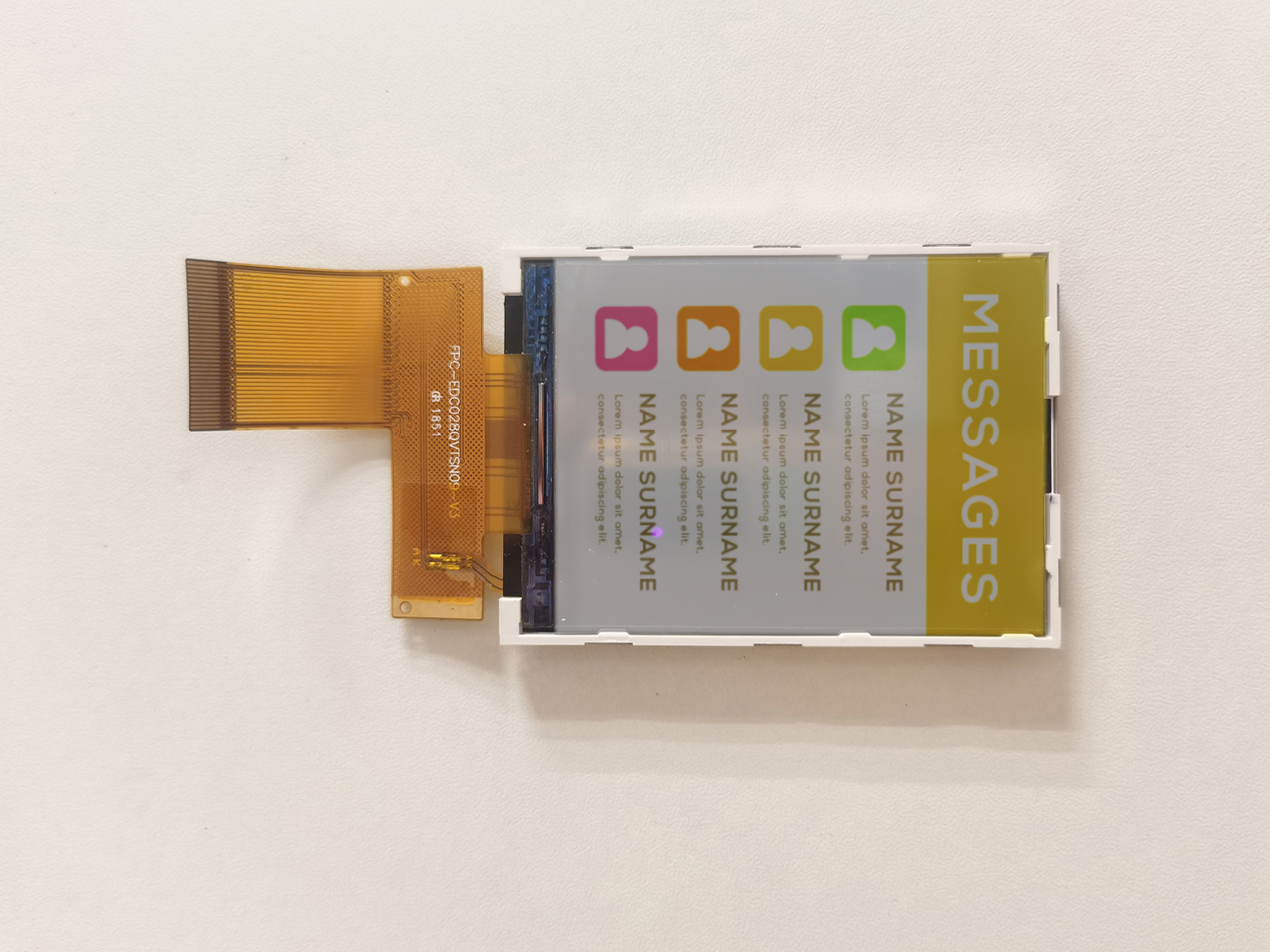

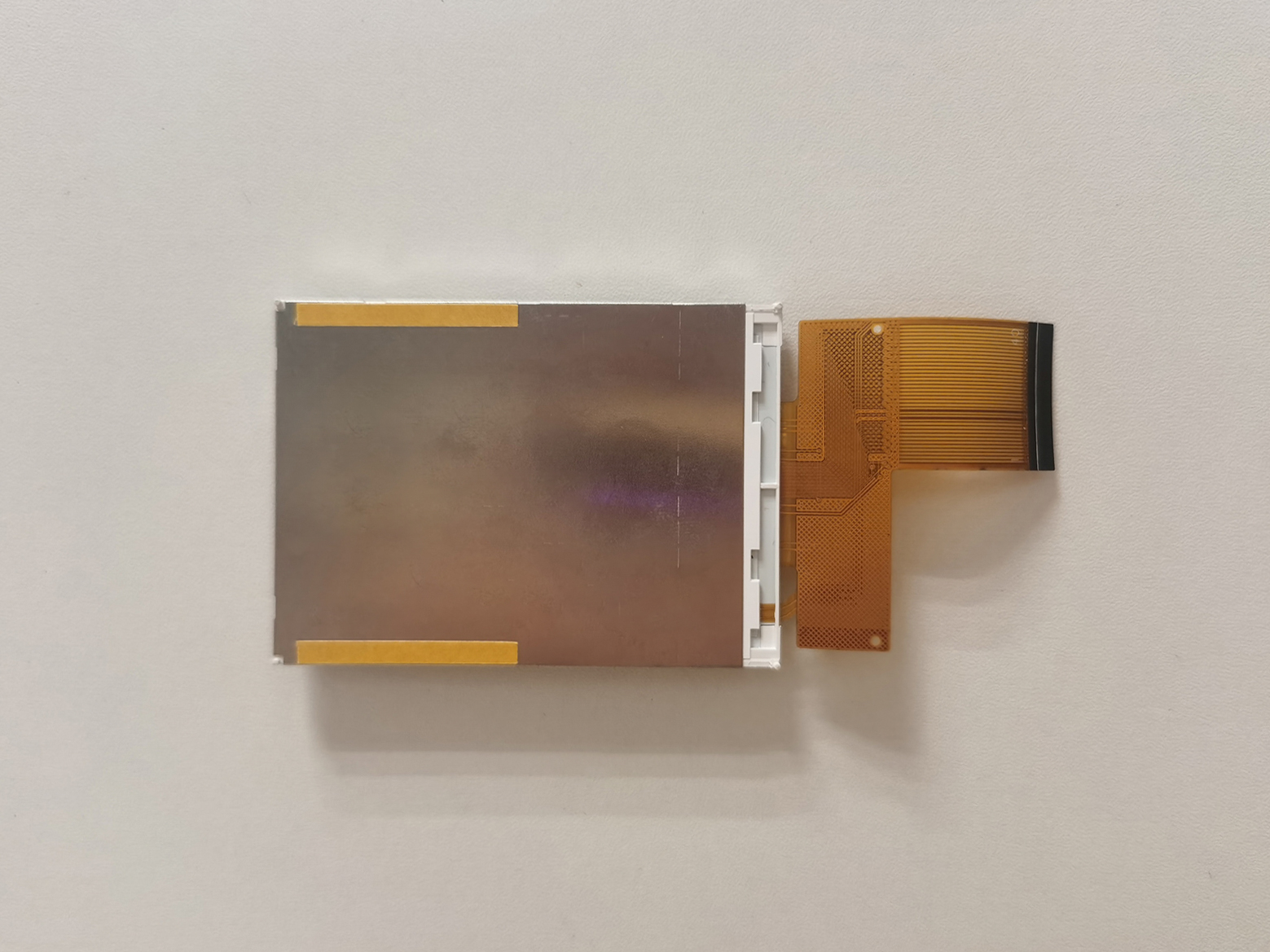

2.8" QVGA 240 x 320 RGB+MCU+SPI

CTC TN Glass, USE GLOBAL PATENT RIGHT

• Size: 2.8" QVGA
• Resolution: 240 x 320
• Brightness: 300 cd/m²
• Pin Count: 45
• LED Config: 4S
• Interface: RGB+MCU+SPI
• Outline Dimension: 50 x 69.2 x 2.45 mm
• AA Dimension: 43.2 x 57.6 mm
• Storage Temp.: -30°C to 80°C
• Operating Temp.: -20°C to 70°C
