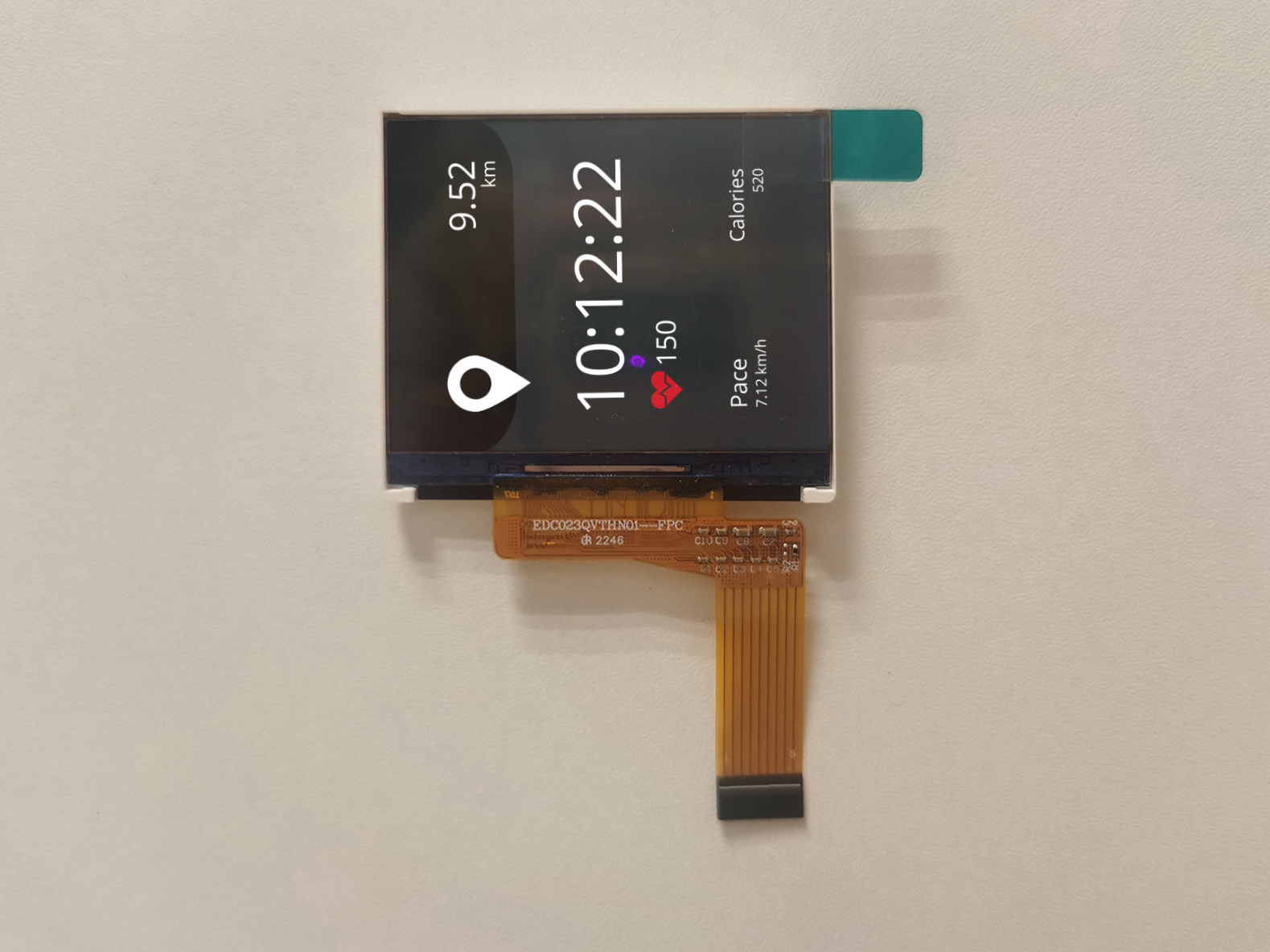

EDC023QVTHN01 Front View

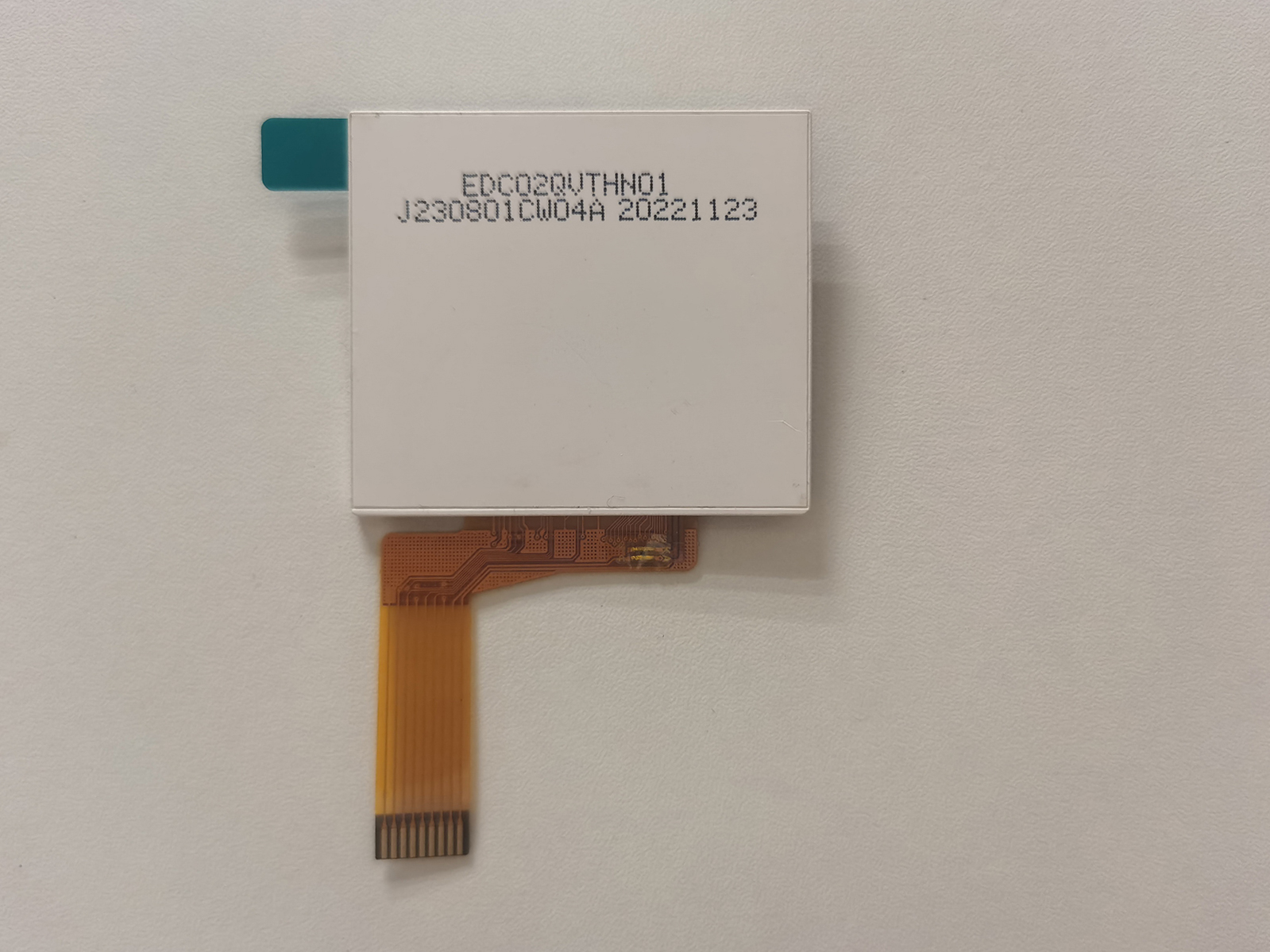

EDC023QVTHN01 Back View

2.3" QVGA 320 x 240 SPI

HSD TN Glass, Double Core Right

Product Details

  • Size: 2.3" QVGA
  • Resolution: 320 x 240
  • Brightness: 1000 cd/m²
  • Pin Count: 9
  • LED Config: 4P
  • Interface: SPI
  • Outline Dimension: 50.6 x 44.3 x 2.3 mm
  • AA Dimension: 46.75 x 35.06 mm
  • Storage Temp.: -30°C to 80°C
  • Operating Temp.: -20°C to 70°C
