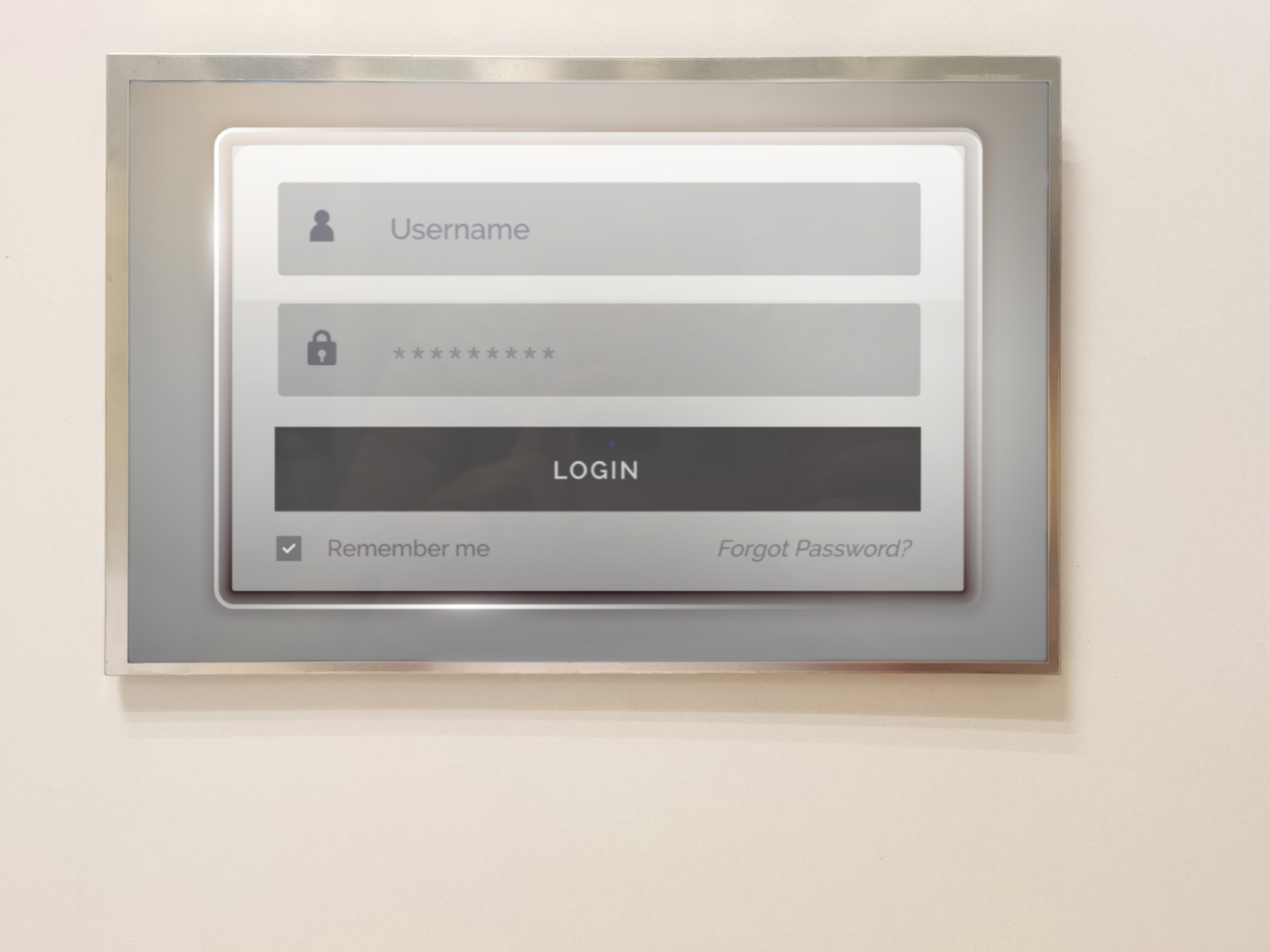

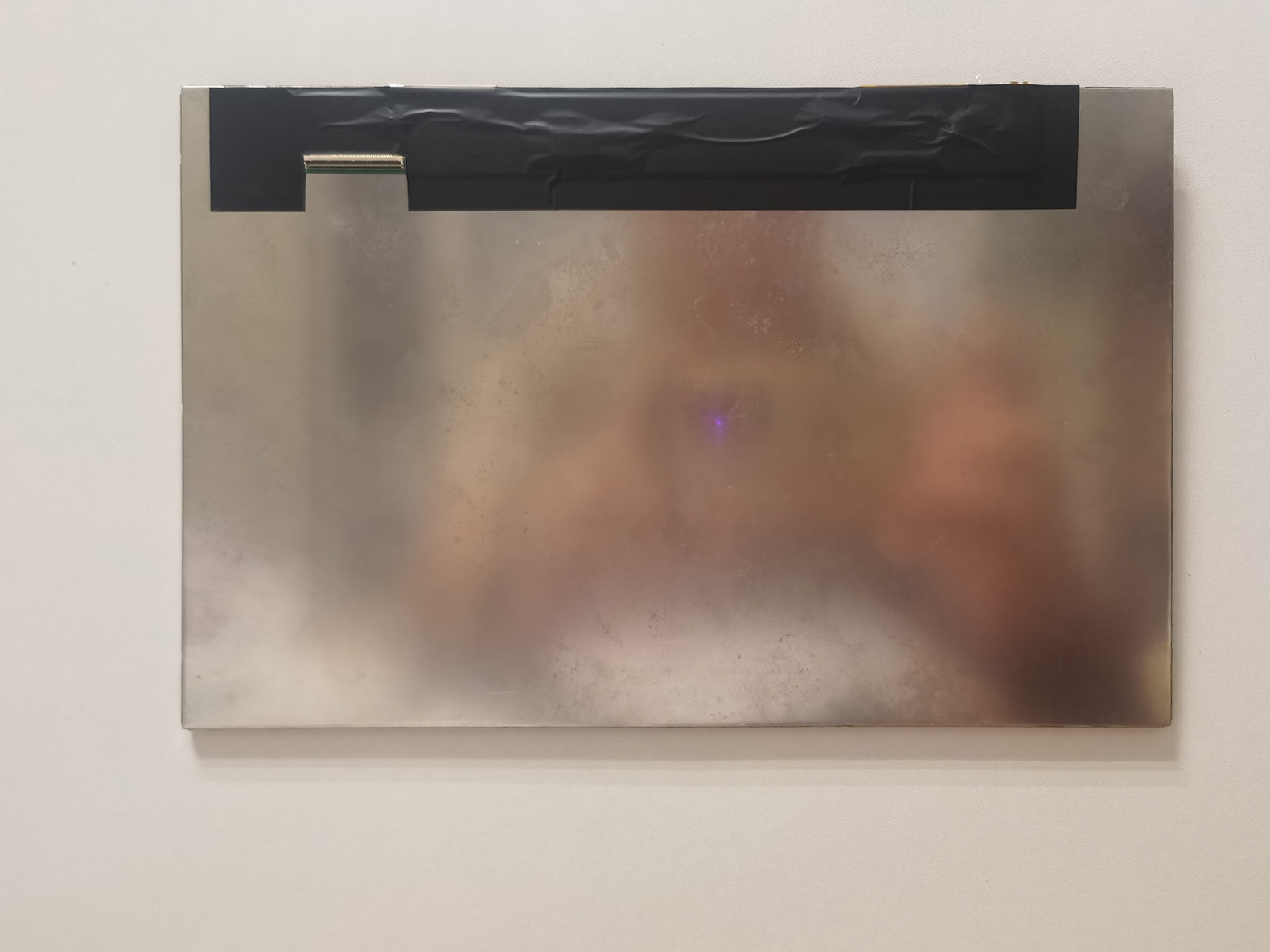

10.1" HD 1280 x 800 LVDS

INNOLUX IPS Glass, With CTP

• Size: 10.1" HD
• Resolution: 1280 x 800
• Brightness: 300 cd/m²
• Pin Count: 40
• LED Config: 3S13P
• Interface: LVDS
• Outline Dimension: 229.46 x 149.1 x 4.5 mm
• AA Dimension: 216.96 x 135.6 mm
• Storage Temp.: -20°C to 60°C
• Operating Temp.: 0°C to 50°C
