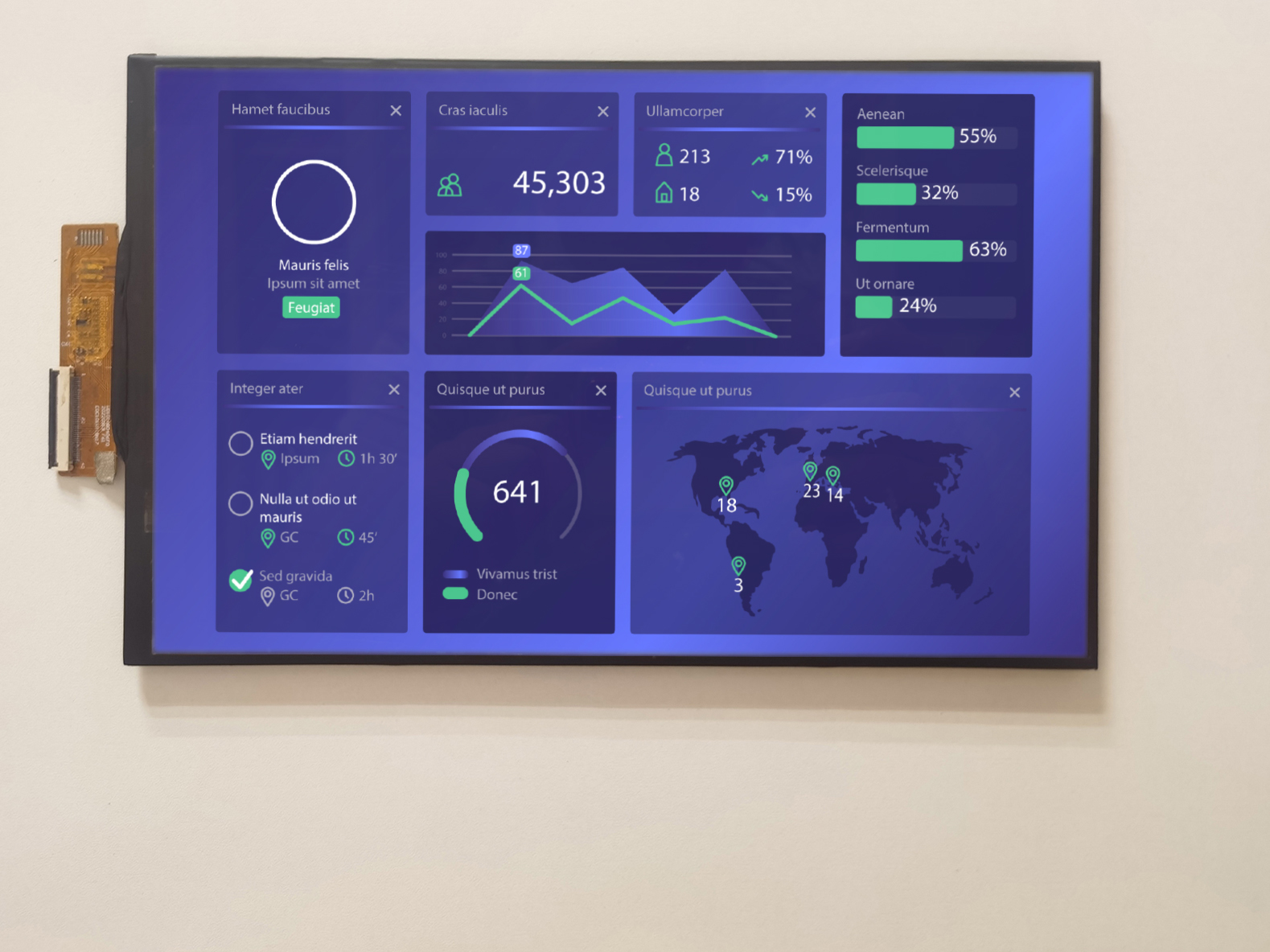

EDC101WXIBN17 Front View

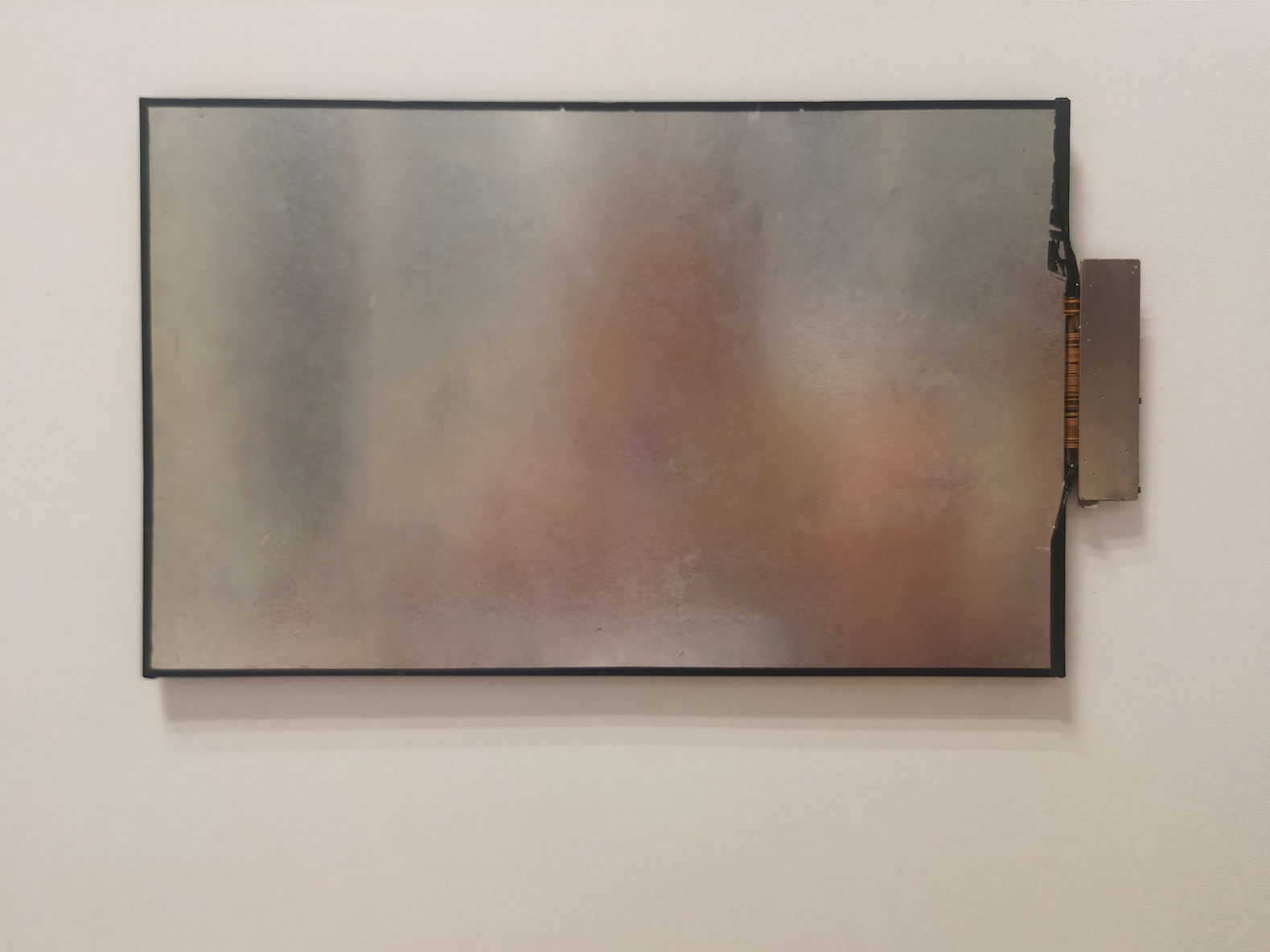

EDC101WXIBN17 Back View

10.1" HD 800 x 1280 MIPI

BOE IPS Glass/FPC with CTP connecter

Product Details

  • Size: 10.1" HD
  • Resolution: 800 x 1280
  • Brightness: 350 cd/m²
  • Pin Count: 40
  • LED Config: 4S8P
  • Interface: MIPI
  • Outline Dimension: 143 x 228.6 x 2.6 mm
  • AA Dimension: 135.36 x 216.58 mm
  • Storage Temp.: -20°C to 60°C
  • Operating Temp.: 0°C to 50°C
