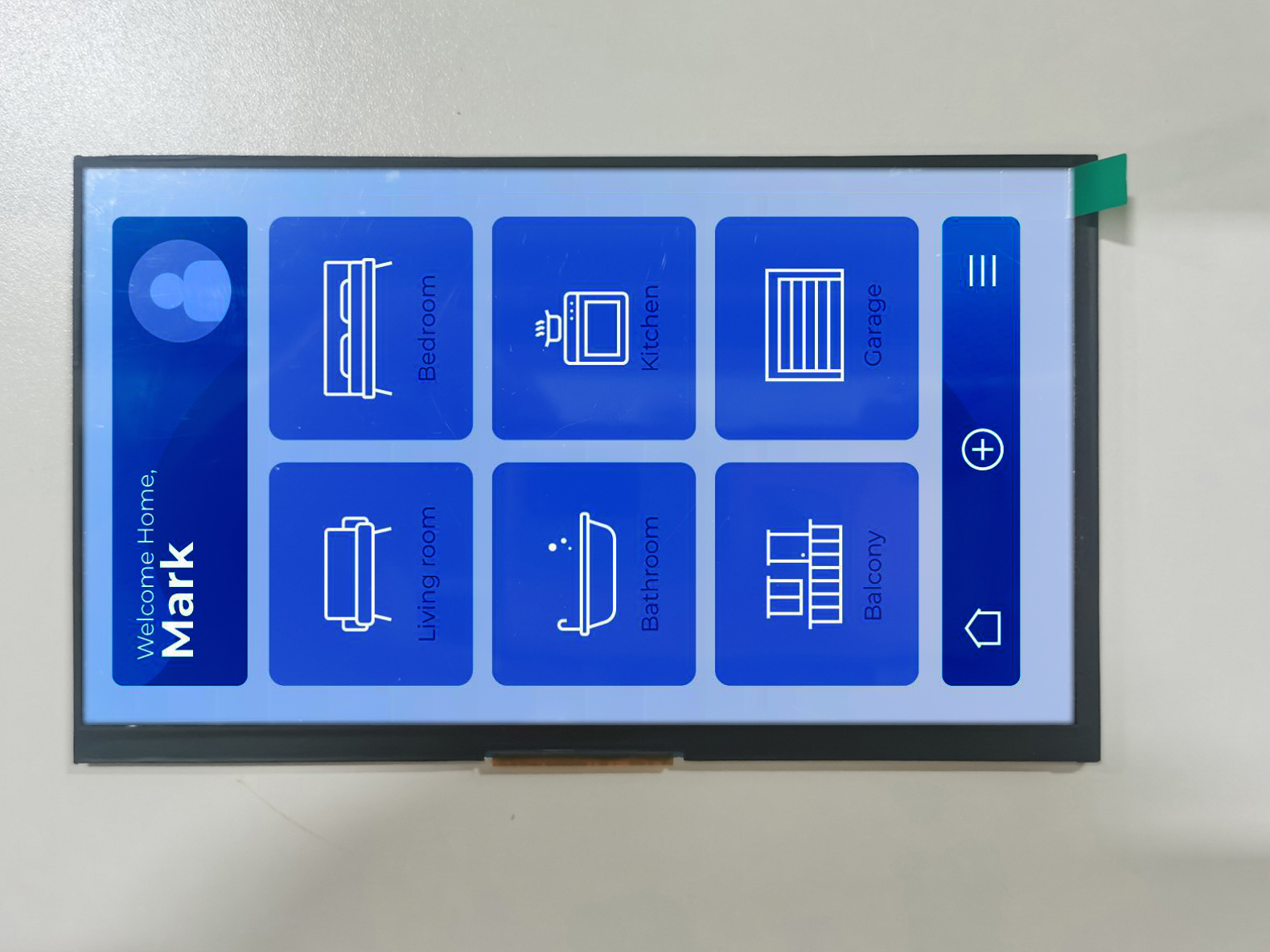

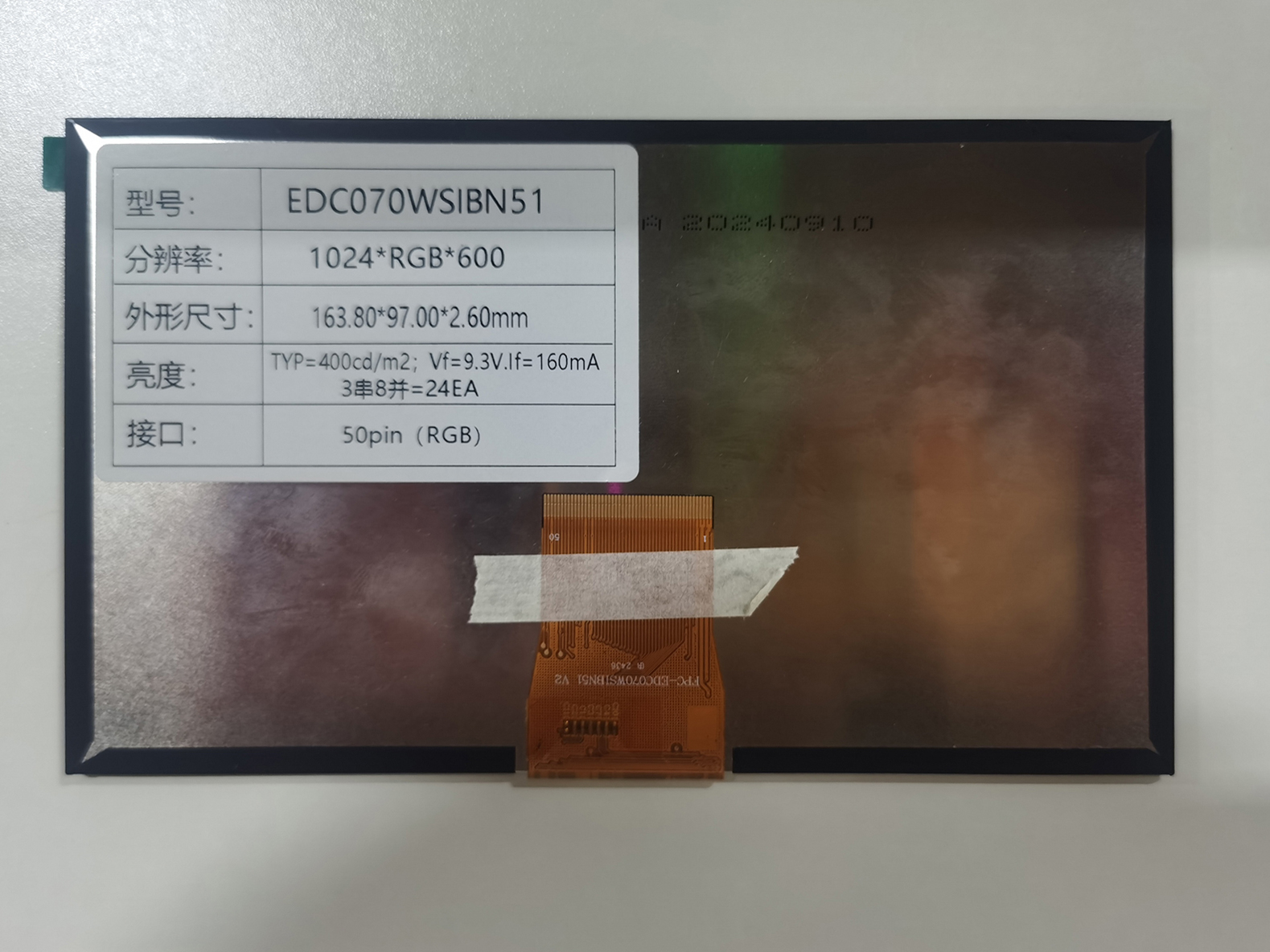

7" WSVGA 1024 x 600 RGB

BOE IPS Glass (Single IC)

• Size: 7" WSVGA
• Resolution: 1024 x 600
• Brightness: 400 cd/m²
• Pin Count: 50
• LED Config: 3S8P
• Interface: RGB
• Outline Dimension: 163.8 x 97 x 2.6 mm
• AA Dimension: 154.21 x 85.92 mm
• Storage Temp.: -30°C to 80°C
• Operating Temp.: -20°C to 70°C
